ideaForge
RYNO The Mapping Maestro
Model No :
RYNO
Part Code :
M-IF10000

Overview


ideaForge’s RYNO is micro category drone that has been approved by the Survey of India (SOI) towards the Swamitva Yojana, which is set to be one of the largest drone-powered mapping projects in the world.

It is a micro category survey-grade drone designed and specialized for mapping applications.

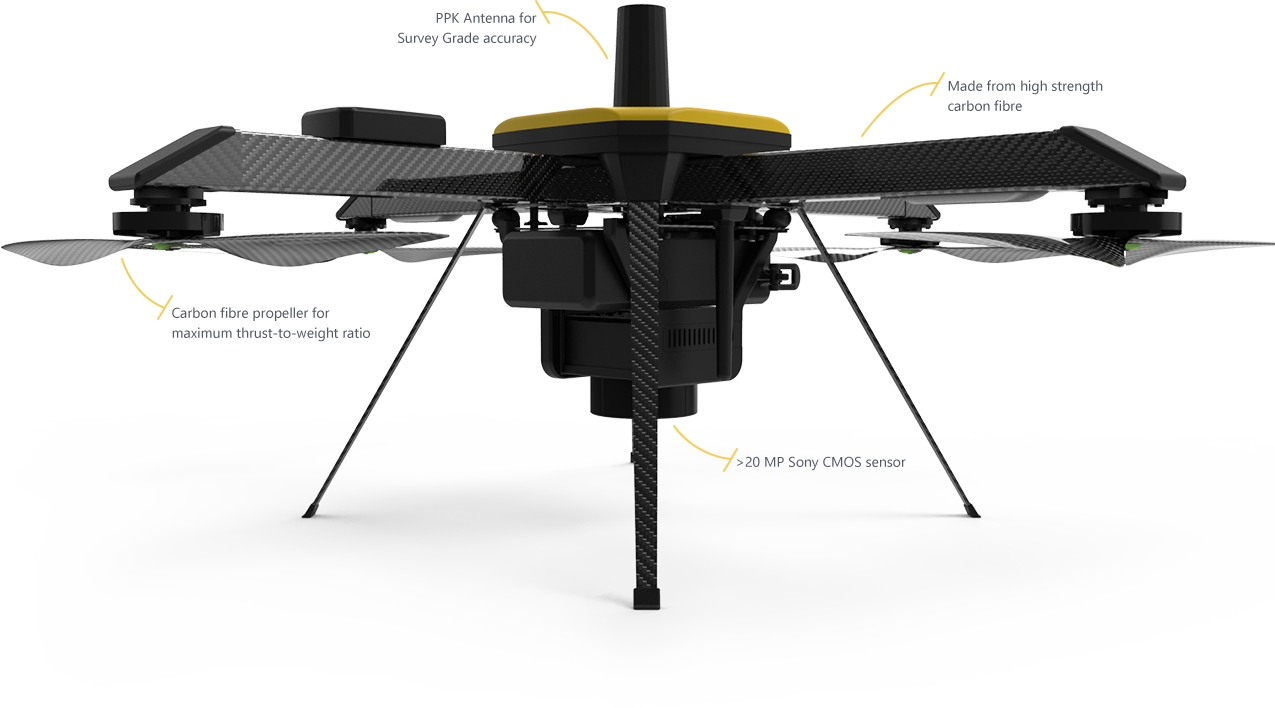

ideaForge’s RYNO drone is equipped with an advanced mapping payload and ideaForge’s state-of-the-art- PPK module to deliver superior results due to its high accuracy in mapping applications.

Features
-SOI Quality
-Superior Accuracy
-Robust Build Quality
-Best-in-Class Area Coverage
-Terrain Avoidance
-Compliant With Air Travel
Major Applications
-Used for terrain mapping, surveying, stockpile estimation, asset inspection and security and surveillance of mining sites.
-They provide mining companies with an aerial perspective at a fraction of a cost and improve operational efficiency.
-Can easily access hazardous and hard-to-reach areas and eliminate manned operations to improve worker safety.
Technical Specifications
-UAV Weight with battery and max. payload <2 Kg
-Range of live transmission (LOS) 4 km (un-obstructed & interference free)
-Typical Cruise Speed 10 m/s
-Functional Temperature Range -10°C to +50°C
-Dust & Drizzle Resistance IP53 rating
-Deployment Time <10 minutes
-Packaging and Storage Backpacks to carry all mission critical components
-Regulatory Compliance NPNT Ready – applicable for Indian airspace
General Specifications
-Operational Range Up to 4km
-Flight Time Over 40min
-Take-of Weight Up to 2kg
