1. Testing and Measurement
  2. Thermal Imager
Teledyne Flir
Flir One Edge Pro Thermal Camera with Wireless Connectivity for iOS® and Android™ Smart Devices
Model No :
Flir One Edge Pro
Part Code :
11002-0201

Overview

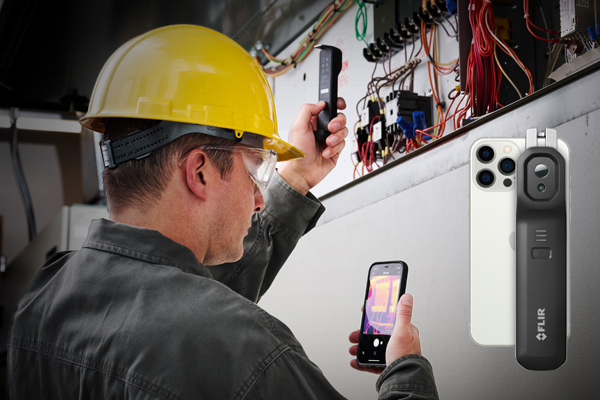

Remotely insptect out of reach targets with the Flir Edge One Pro innovative and thermal imager that wirelessly connects to your smart devices or you can clip to on to your phone or tablet for one handed operation.Take high quality thermal images from any position or angle with natural grip with FLIR MSX and VividIR.
Easily upload images and videos from FLIR ONE Edge Pro to the cloud with FLIR Ignite™.It is compatible with ios and androis smart phone and tablets.

Overview
Remotely insptect out of reach targets with the Flir Edge One Pro innovative and thermal imager that wirelessly connects to your smart devices or you can clip to on to your phone or tablet for one handed operation.Take high quality thermal images from any position or angle with natural grip with FLIR MSX and VividIR.
Easily upload images and videos from FLIR ONE Edge Pro to the cloud with FLIR Ignite™.It is compatible with ios and androis smart phone and tablets.
Features
­Remotely inspect hazardous areas up to 30 m(100 ft) away.
­Identify targets and easily recognize where problems are ­located with FLIR MSX® (Multi-Spectral Dynamic Imaging)
­Measure temperatures up to 400°C (752°F)
­Rugged design with up to 1.5-hour battery life
­Step-by-step guidance with FLIR-specific smart device apps
­Simple integration with FLIR Thermal Studio and FLIR Ignite software
General Specifications
­Remote operation: Up to 30 m (100 ft) from smart device via Wi-Fi
­Storage temperature: -40°C to 70°C (-40°F to 158°F)
­Size (w × h × d): 35 mm × 37.5 mm × 149 mm (1.4 in × 1.5 in × 5.9 in)
­Weight (incl. battery): 153 g (5.4 oz)
­Drop tested Drop from: 2m (6.56 ft)
Technical Specifications
­Thermal Resolution: 160 × 120 (19,200 pixels)
­Thermal Sensitivity/NETD: 70 mK
­Thermal Sensor: Pixel size 12 µm, 8 — 14 µm spectral range
­Battery Life: Approximately 1 hour 30 minutes
­Accuracy: ±3°C (5.4°F) or ±5%
­Spectral range: 8 µm – 14 µm
­Frame rate: 8.7 Hz
