Netrack
Open Rack Solutions-NAOR 2 Post Series
Model No :
NAOR 2 Post Series
Part Code :
NAOR 2 Post Series

Overview

NAOR - 2 Post Series are Ultra rigid Racks for high density application for networking / labs / data Centres. These Racks are made of rugged aluminum profiles, individually powder coated and bolted with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system.

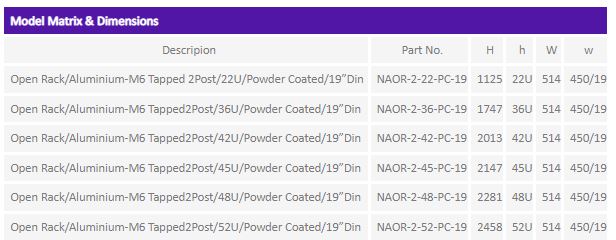

Available in 22RU ~ 52U variants.

Standard for Racks configuration will be bolted frame with 2 or 4 Post. 4 Post will have adjustable Steel folded depth members to adjust the depth to meet site requirements.

Features
-Conforms to DIN 41494 or Equivalent EIA / ISO / EN Standard
-High-strength, lightweight 6061-T6 aluminum extrusion constructions
-Two top angles and heavy-duty assembly hardware for a stronger rack to handle heavier loading
-25 No. M6 mounting screws with combination Phillips/ straight heads and pilot points to reduce cross threading and installation time
-Unique packaging inserts eliminate damage from components hitting together in the carton during shipping and handling.
-Ease of assembling by high quality fasteners.
-Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space
-Numbered U positions
-Panel Mounting Holes: M6 threads in both flanges
-Powder Coated or anodized provide a uniform appearance and protection against aluminum oxidation corrosion
-State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry
-Conductive M6 tapped DIN standard holes -100% assured conductivity within the rack. Eliminate separate grounding strip.
-Heavy duty bottom (160X60X8Th) MM & top angles (38X38X4.8Th) MM and C frames (32X75X5Th) MM to ensure up to 1500Kg static load capacity
-Custom configurations and assemblies available by special order
-Assembly hardware is included
-Weight capacity of 1500Kg Static (weight must be evenly distributed)

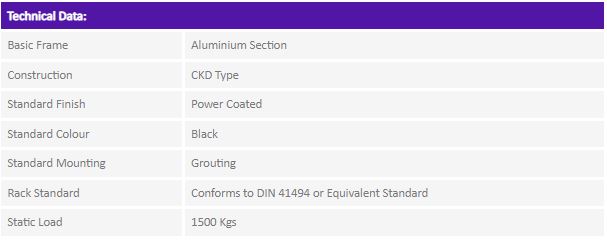

Technical Specifications

-Basic Frame :- Aluminium Section
-Construction :- CKD Type
-Standard Finish :- Power Coated
-Standard Colour :- Black
-Standard Mounting :- Grouting
-Rack Standard :- Conforms to DIN 41494 or Equivalent Standard
-Static Load :- 1500 Kgs
