Netrack
General Electronics Racks-Floor Mount Racks-FM Series
Model No :
FM Series
Part Code :
FM Series

Overview

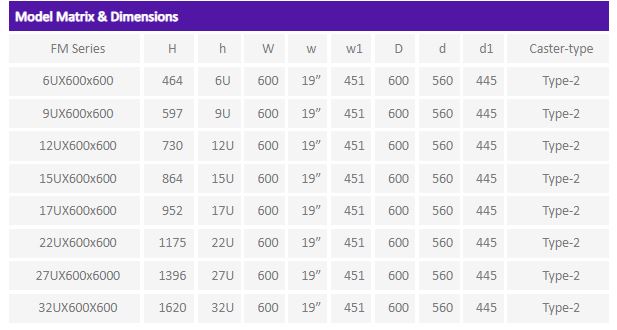

FM Series Available in 6RU ~32RU Variants with 600 Depth configurations and 600 Width configurations.

Standard for Racks configuration will be welded frame integrated with side panel and vented top cover with fan mounting provision, Associated with Front Glass Door with lock & Key and Back Metal door with lock & key and freestanding on floor with 4 No casters wheels with 2 No with brakes and 2 No without brakes.

Features
-Conforms to DIN 41494 or Equivalent EIA /ISO / EN / CEA Standard
-Adjustable mounting depth
-Universal 44.45MM Pitch Holes For DIN Standard Racks
-State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry
-100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
-Powder coated finish with seven tank pretreatment process meeting ASTM standard
-Grounding & Bonding Options
-Fan module Mount provision on top cover
-4 No Adjustable, 19” verticals with Punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.
