Morley-IAS

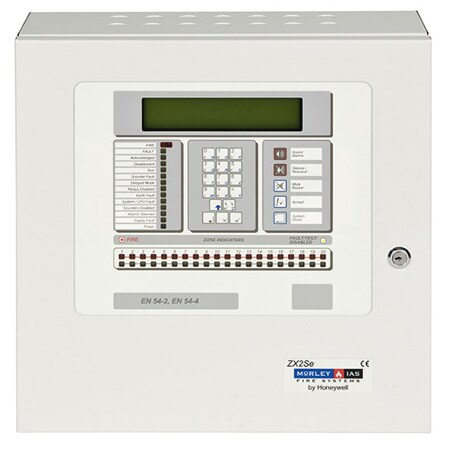

Morley-IAS ZXSe Range ZX2Se Analogue addressable 1-2 loop fire alarm control panel
Model No :
720-001-301
Part Code :
720-001-301

Overview

The ZXSe range of analogue addressable fi re alarm control
panels have been designed and constructed around proven and reliable microprocessor technology. This simple
approach has produced a modular, scalable fi re alarm
platform suitable for protecting all types of premises.

Features
- Supports Apollo (Xplorer, XP95 and Discovery), Hochiki (ESP) & System Sensor protocol devices
- Loop Capacity: 460mA per loop
- 4x40 – Character LCD alphanumeric display with back-light
- Total number of devices 198. Sensors 99 & 99 MCPs, Modules & AV products
- Alphanumeric multi-level keypad
- facilitates complex cross-panel programming
- Auto-learn facility allows rapid and accurate commissioning of devices
- Network up to 99 Panel
- True peer-to-peer and fault tolerant network for high system reliability
- PC configuration software (supplied with panel)
- 200 fire zones
- Supports USB upload/download
Keywords
NA
Electrical Specifications
NA
General Specifications
- Zones 200 (max)
- LED Type Zonal Indicators FIRE/FAULT/TEXT/DISABLED 20
- Internal Sounder- Yes
- User Controls Sound Alarms, Silence/Resound, Mute Buzzer, Accept, System Reset
- Programming Controls Alphanumeric multi- level Keypad
- LED Type General Panel Status Indicators - FIRE, FAULT, Acknowledged, Disablement, Test, Sounder Fault, Delayed Mode, Relays Disabled, Earth Fault, System/CPU Fault, Sounders Disabled, Alarms Silenced, Supply Fault, Power
- Serial Interface - 2 serial ports with connections for optional RS485 or RS232 plug-in communication cards
- Auxiliary Relays - 1 fault and 1 fi re relay voltage free, changeover outputs contacts rated at 24V AC/DC, 1A, 0.6 PF maximum
- Sounder Outputs -2 programmable outputs. Open and short circuit monitoring. 1A maximum per output (Maximum total load 1.3A)
Brand SKU
NA
Rashi Part SKU
NA
Warranty
1 Year
