Morley-IAS

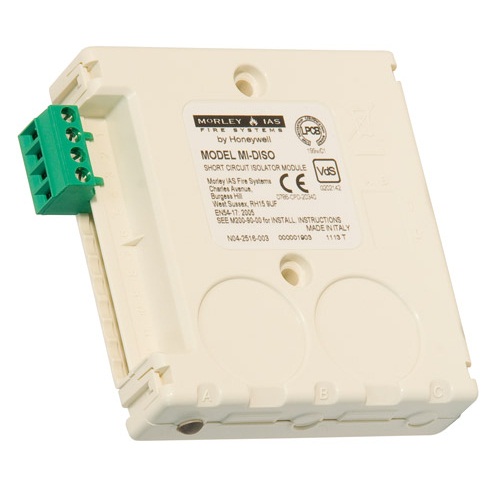

Morley-IAS MI-DISO Loop Isolation Module
Model No :
MI-DISO
Part Code :
MI-DISO

Overview

The Morley-IAS loop isolator module is used on the
Morley-IAS intelligent fire alarm control panels to
protect the system against wire-to-wire short circuits on
the analogue addressable loop wiring.

Features
- DIN rail mounting option
- Surface mounting option
- Plug in connectors
- Tri-colour LED status indication
- Address selector switches visible in 2 planes
- LED status visible in 2 planes
- Approved to GEA GEI 1-082 and CEA GEI 1-084
Keywords
NA
Electrical Specifications
NA
General Specifications
- Operating voltage 15 to 30 Vdc
- Standby current 200µA at 24 Vdc maximum
- Fault detection delay 100 to 400 mS
- On resistance 0.065O at 15 Vdc maximum
- Terminal Wire 2.5 mm2 maximum
- Dimensions (mm) 93 x 94 x 23 (H x W x D)
- Weight 62g
- Operating Temperature -20 ºC to +60 ºC
- Humidity 0 to 95% maximum non-condensing
Brand SKU
NA
Rashi Part SKU
NA
Warranty
1 Year
