Morley-IAS

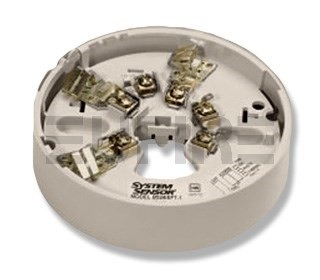

Morley-IAS B524IEFT-1 Sensor Mounting base fitted with built-in FET isolator
Model No :
B524IEFT-1
Part Code :
B524IEFT-1

Overview

The B524IEFT-1 isolator base is designed for use with all 200 analogue addressable detectors.The isolator base prevents an entire communication loop from being disabled when a short circuit occurs

Features
- Low Profile ( 26 mm)
- Low current consumption 100 micro Amp
- Upto 99 Isolators per loop
- Complete isolation of short circuits
- Automatic restore when short circuit is corrected
- Rugged Industrial construction
- Remote LED Connection
- Sensor continues to operate in case of a short circuit on either side of isolator base
Keywords
NA
Electrical Specifications
NA
General Specifications
- Electrical Ratings – includes base and detector
- Voltage Range: 15-32 VDC
- Standby Current (nominal): 150µA at 24 VDC
- Power-Up Surge at Maximum Rated Voltage: 1.5mA–Sec.
- LED Current (nominal): 6mA at 24 VDC
- Operating Temperature Range: 32° to 150°F (0° to 66°C)
Brand SKU
NA
Rashi Part SKU
NA
Warranty
1 Year
