Future Fibre Technologies
Secure Fence
Model No :
FFT Secure Fence
Part Code :
FFT Secure Fence

Overview

FFT Secure Fence system is a technology which helps in detecting and locating intrusions on perimeters and borders that were, until now, always thought to be too expensive to protect.

The low cost fibre optic sensor cable is easily attached to the fence, pinpointing the location of fence climbing, lifting or cutting to within 10 meters (30 feet) to 25 meters (80 feet) or better for fences of up
to 80km (50 miles) in length.

FFT’s industry leading advanced signal processing minimises nuisance alarms, without compromising intrusion detection
sensitivity.

Features
- An FFT Secure Fence controller connects to a sensor cable straight run of 40 km (25 miles) or a loop of 80 km (50 miles)
- Locate intrusions within 10 metres (30 feet) to 25 metres (80 feet), depending on fence type
- Detection of multiple simultaneous intrusions along the fence
- No electronics or power in the field
- Rapid in-field repair
- Two year warranty extendable to life of product
- Immune to EMI/RFI
- Intrinsically safe
Warranty
Warranty - Comprehensive two year warranty with ongoing warranty extension program available for the life of the product.
Electrical Specifications
- Fibre Optic Sensor: Custom UV stabilized single mode fibre optic sensor cable – expected life >20 years
- Sensing Configuration: Distributed sensor with a total optical path length of up to 80km or 50 miles per controller. Total power budget of 25dB
- Location Accuracy: Within 10 meters (30 feet) or better anywhere along the sensor cable for high quality chain link and weldmesh fences, up to 25 meters (80 feet) on other FFT approved fences
- Zone Length & Number: Infinitely variable ‘Virtual Zones’ are created in the FFT CAMS software to suit specific site requirements
- Probability of Detection (POD): Extremely high due to intelligent signal processing and analysis of disturbances
- Nuisance Alarm Rate (NAR): Minimal due to multi-parameter intelligent signal analysis, discarding non-intrusion and environmental events
- Operating Temperature Range: FFT Sensor Cables: -55°C to +70°C (-67°F to +160°F) and Controller (head end): 0°C to +45°C (32°F to +113°F)
- Electrical Specifications: Input voltage 110–240V AC, 50/60Hz, auto ranging, 148W consumption, internal redundant power supplies. Optional 48V DC available. Note: All field installed components are passive and require no power, communications, or electronics on the fence line
- System Interface: Interface (via TCP/IP and FFT CAMS) to more than 40 security, video and access control management systems and to a wide range of devices including security cameras, lighting, PLCs, SNMP, email and text messaging. Optional dry contacts
- Alarm Monitoring: FFT CAMS provides the option of real-time monitoring of alarm types and locations using an intuitive map-based user interface. Intrusion events with GIS co-ordinates are instantly displayed onto a sitemap and automatically logged into a secure database
- Seasonal Calibration: No seasonal calibration or adjustments required
General Specifications

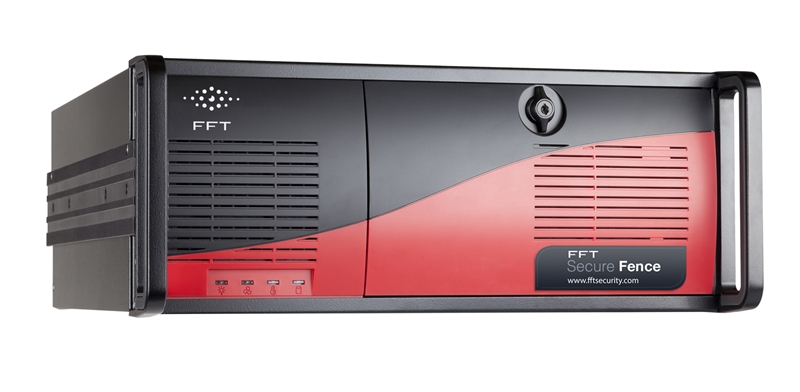

- Controller Dimensions/Weight: 177mm H x 482mm W x 497mm D (7.0”H x 19.0”W x 19.6”D) 19” rack mounted, 4U high, Weight 24 kg (53lbs)
- Regulatory Certification: CE certified, FCC Part 15 subpart B Class B
