Fluke Networks
Fluke - FQM-100-M - Fiber Optic Power Meters and Fault Locators
Model No :
FQM-100-M
Part Code :
4774949

Overview

Fiber QuickMap fills the gap between a VFL and an OTDR. These models have the simplicity of a VFL, and provide distance and power information on high losses, breaks, and the end of the fiber.

Features
- One-Button Testing
- Six-second Troubleshooting
- Obtain Critical Visibility into the Multimode Channel
- Locate Causes of Bit-Error Rates
- Locate the Most Common Causes of Multimode Fiber Failure
General Specifications
- Operating temperature with the battery 0ºC to 50ºC
- Non-operating temperature -20ºC to 60ºC
- Operating relative humidity (without condensation) 95% (10ºC to 35ºC) 75% (35ºC to 40ºC) uncontrolled < 10ºC
- Vibration Random, 5 Hz to 500 Hz, MIL-PRF-28800F CLASS 2
- Shock 1 meter drop test
- Altitude 3000m
- EMC EN 61326-1: 2004
- Battery type 2 AA alkaline batteries (no battery charger)
- Battery life 1500 tests (typical)
- Laser safety Class 1 CDRH Complies to EN 60825-2
- LCD type Backlit black and white (segments)
- Index of refraction range 1.45 to 1.5 (factory default is 1.496)
- Auto turn off Automatically turns off after 5 minutes if no keys are pressed. Backlight turns off first.
- Factory calibration interval None
- Output wavelengths 850 nm ± 10 nm
- Laser classification Class 1 CDRH Complies to EN 60825-2
- Dynamic range >11 dB
- Maximum distance 1500 meters or 4921 feet
- Maximum number of incidents shown 9
- Distance accuracy (0 m to 1500 m or 0 ft to 4921 ft) ± (1 m + 0.1 % x length) for reflective incidents1 ± (3 m + 0.1 % x length) for non-reflective incidents2
- Testing speed < 6 seconds typical

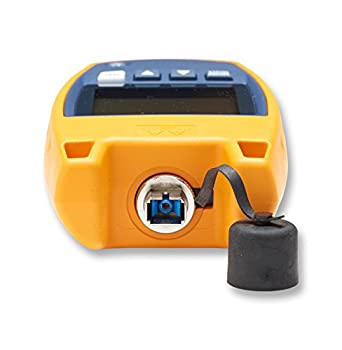

- Connector Removable/cleanable SC adapter, UPC polish
- Fiber types tested 50/125 µm or 62.5/125 µm multimode
- Detection of reflective incidents3 -35 dB default threshold (User selectable: -20 dB to -45 dB in 5 dB increments)
- Reflectance accuracy4 ± 4 dB
- Maximum reflectance measurement -20 dB
-Detection of loss incidents5 0.70 dB default threshold (user-configurable from 0.5 dB to 6.1 dB in 0.2 dB increments)
- Bulkhead quality If no fiber is attached or if the connector is dirty, the troubleshooter displays 0 m or 0 ft.
- Live fiber detection Detects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a signal is there. Looks for a signal every 3 seconds after the first detec-tion. +7 dB maximum input power
