Bosch

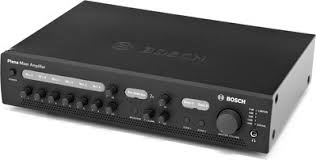

120 WATT MIXER AMPLIFIER
Model No :
PLE-1ME120-3IN
Part Code :
PLE-1ME120-3IN

Overview

The mixer amplifiers are equipped with an inbuilt music source, which can provide hours of uninterrupted music either through Bluetooth streaming or USB pen drive. They are supplied with an IR remote control for controlling the
music source. The units feature four mic/line inputs, 1 BGM and operate in a single zone.

Features
- Inbuilt Bluetooth for audio streaming
- Supports audio playback from USB pen drive
- 4 microphone/line inputs, plus music source input
- Insert feature to use as a pre/power amplifier
- Optional 2 tone chime generation for input 1
Warranty
12 months from date of Invoice
Rashi Part SKU
PLE-1ME120-3IN
General Specifications
- Voltage PLE-1MExxx-3IN 220-230 V, AC, 50 Hz / 60 W, 120 W, 240 W (reduced power at lower mains)
- Frequency response 80 Hz to 18 kHz (+1/ 3 dB @ 10 dB ref. rated output)
- Distortion < 1% @ rated output power, 1 kHz
- AUX input Connector Cinch, stereo converted to mono
- Insert 1 x Connector RCA Cinch
- Loudspeaker output 100 V Connector Screw terminal, floating
- Max. / rated PLE-1ME060-3IN 90 W / 60 W
- Loudspeaker output 4 ohm Connector Screw terminal, floating
- Max. / rated PLE-1ME060-3IN 15.5 V (60 W)
- Safety acc. to IEC 62368-1
- EMC emission acc. to CISPR 32
