Testo
Testo-510
Model No :
Testo-510
Part Code :
0560 0510

Overview

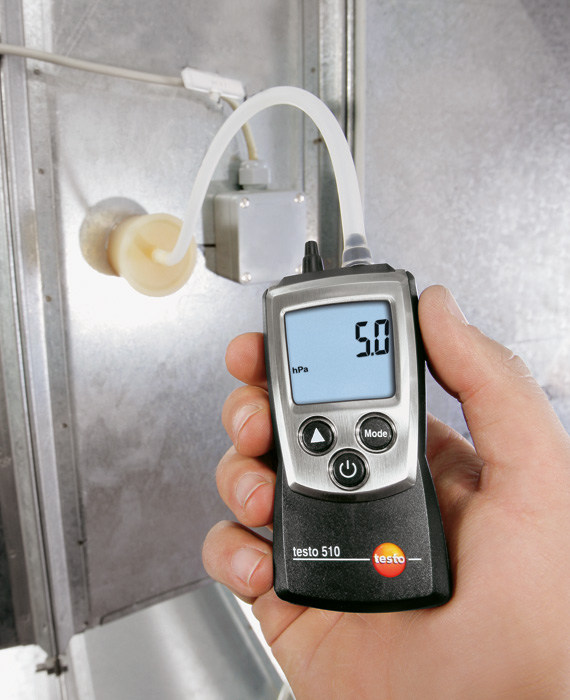

Digital Manometer

Overview
Digital Manometer
Features
Datasheet for Testo-510

1. Differential pressure measurement 0 to 100 hPa
2. Flow velocity measurement possible with Pitot tube
3. Temperature and air density compensation
4. 10 selectable units
5. With Backlit Display
6. Protective cap for safe storage
7. Incl. wrist strap and belt holder

Keywords
Differential pressure measurement
Pressure measurement
Low Pressure measurement.
Air Pressure measurement
Digital Manometer.
Manometer.

Instrument Specifications
Measuring range: 0 to 100 hPa
Accuracy: ±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa)
Resolution: 0.01 hPa

General Specifications
Selectable unitshPa, mbar, Pa, mmH2O, inH2O, inHg,
mmHg, psi, m/s, fpm
Measurement rate 0.5 s
max. static pressure: 1.5 bar
Positive pressure: 500 mbar
Storage temperature -40 to +70 °C
Operating temperature 0 to +50 °C
Battery type 2 AAA micro batteries
Battery life 200 h (average, without display illumination)
Protection class IP40
Weight 90 g (with batteries and protective cap)
Dimensions 119 x 46 x 25 mm (incl. protective cap)
Warranty 2 years

Brand SKU
Testo-510

Rashi Part SKU
Testo-510

Warranty
2 Years
